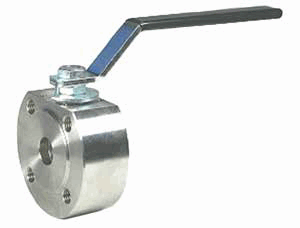

Wafer ball valve

The Wafer ball valve, full bore, produced from round bar, can generally made in carbon steel or stainless steel body, but we can change standard materials according customer specifications.

The wafer ball valves are manufactured in accordance to the following standards:

• EN 12516.2
• ASME B16.34
• ISO 14313
• EN 1092-1
• EN 1759-1
• ASME B16.5
• ANSI B1.1
• ISO 14313
• EN 558

Pressure rating: PN 16-40-64-100, ANSI 150-300-600, while the diameter are from DN 15 mm to DN 150 mm.
The valve can be manual or drilled ISO 5211 for actuator coupling and the Wafer drilling is metric or UNC.

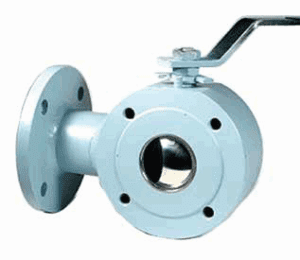

The Audco Italiana wafer ball valve is supplied in three variants so as to satisfy the customer’s needs:
